QEE273
Plastic Infrared Light Emitting Diode
Features PACKAGE DIMENSIONS
■ λ = 850nm
■ Package Type = Sidelooker
■ Chip Material = AlGaAs
■ Matched Photosensor: QSE213 and QSE243
■ Medium Wide Emission Angle, 30°
■ Package Material: Clear Epoxy
■ High Output Power

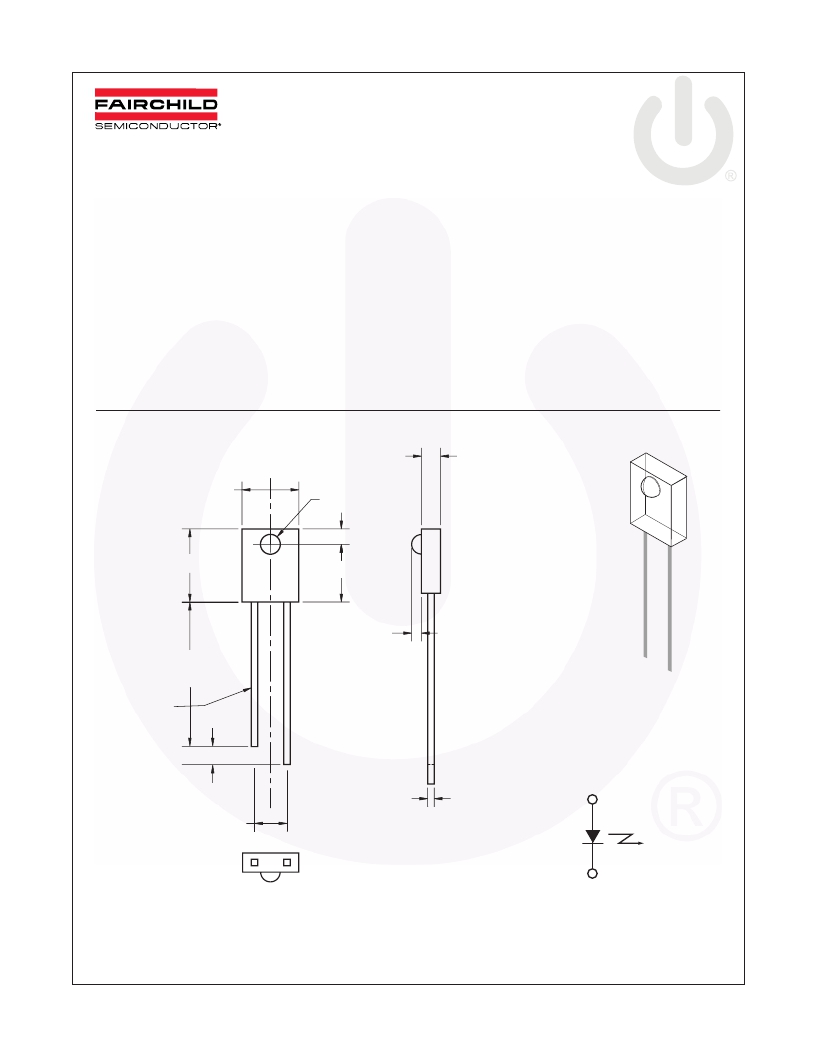

Package Dimensions
0.060 (1.50)
Description
The QEE273 is an 850nm AlGaAs LED encapsulated in
a medium wide angle, thin plastic sidelooker package.
0.174 (4.44)
0.224 (5.71)
R 0.030 (0.76)
0.047 (1.20)
0.177 (4.51)
0.030 (0.76)
0.5 (12.7)
MIN
CATHODE
0.060 (1.52)
Schematic
0.020 (0.51)
SQ. (2X)
0.100 (2.54)
ANODE
CATHODE
Notes:
1. Dimensions of all drawings are in inches (mm).
2. Tolerance is ±0.010 (0.25) on all non-nominal dimensions
unless otherwise specified.
?2009 Fairchild Semiconductor Corporation
QEE273 Rev. 1.0.0
www.fairchildsemi.com
